Spec Writer for Design Professionals

Step 1 — pick a configuration.

Every layout is shown in a neutral finish and is available in any panel face material. Choose the layout first; the finishes come next.

1 · Configuration2 · Finishes3 · Documents

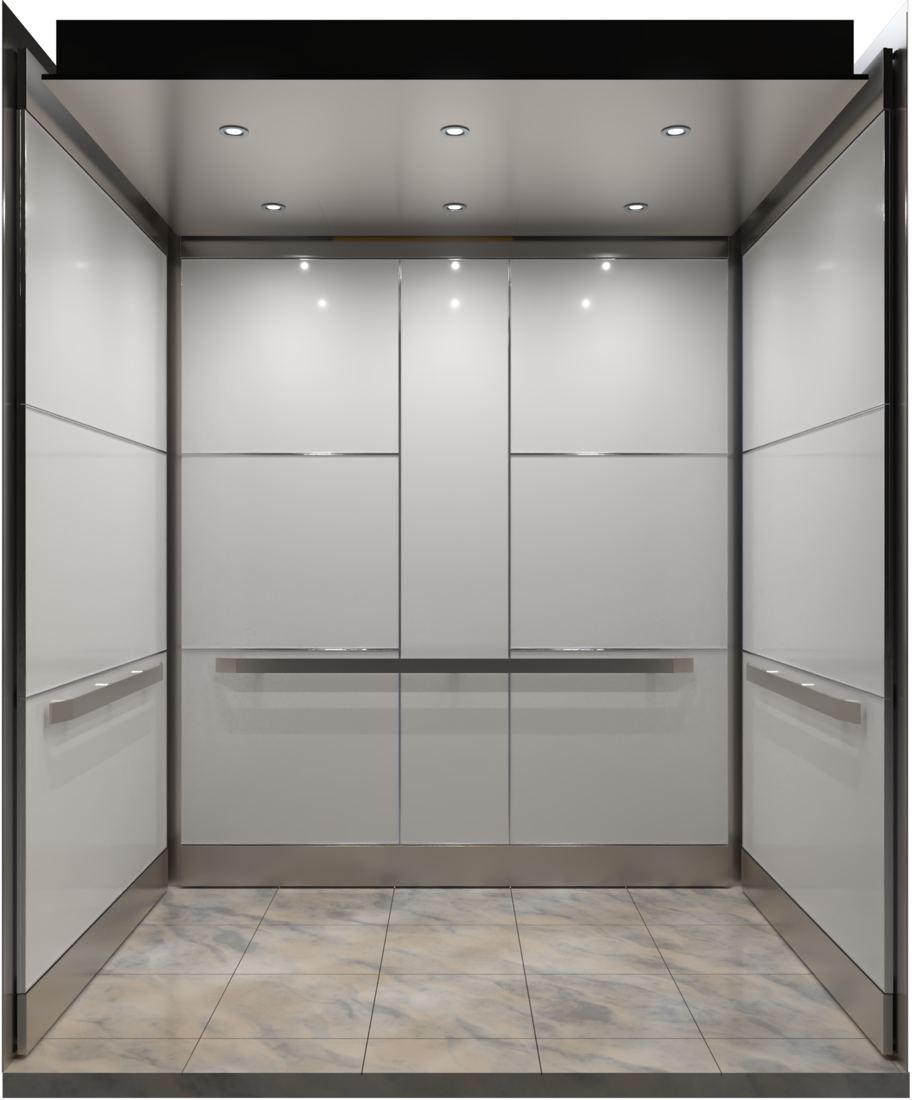

Apex configuration — Center Panel · Split Side Panels · Handrail

Apex

Center Panel · Split Side Panels · HandrailSpecify finishes →

PDFPC-01 data sheet PDFElevations DXFCAD

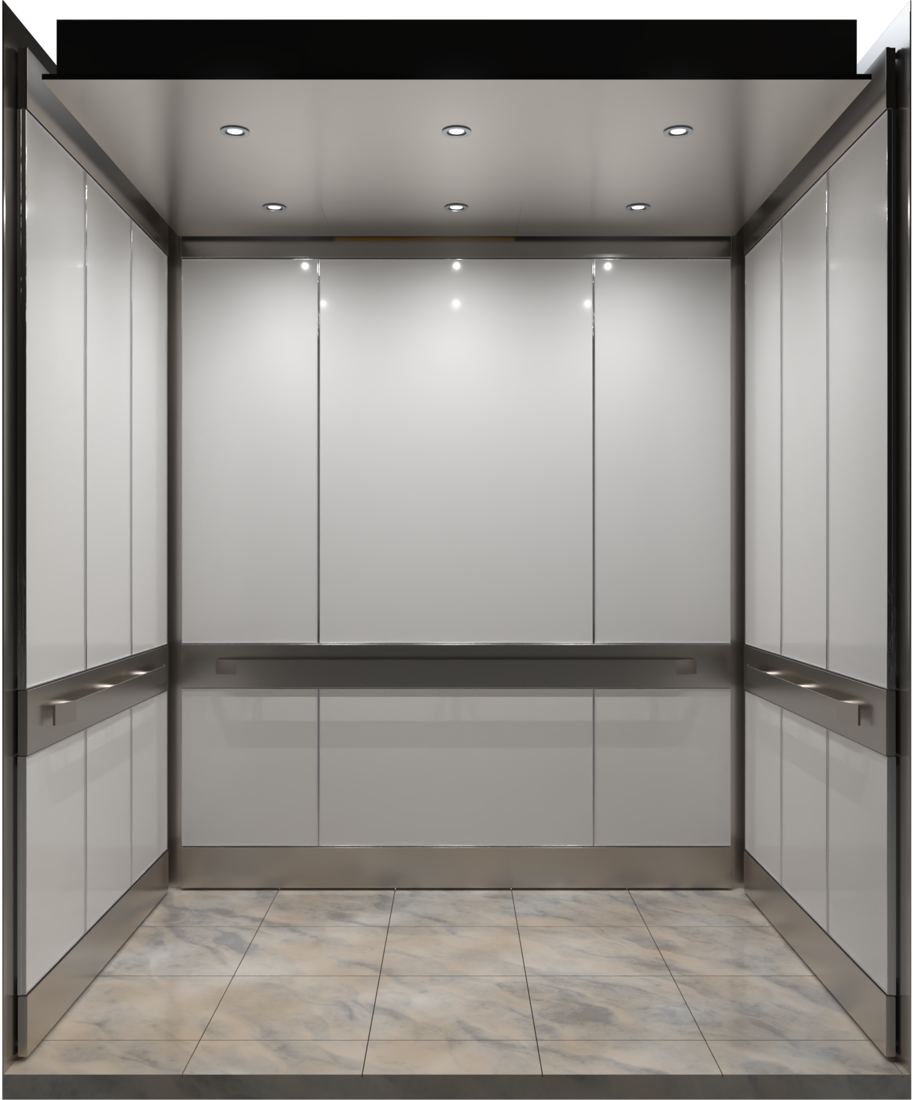

Monolith configuration — Full-Height Panels · Chair Rail

Monolith

Full-Height Panels · Chair RailSpecify finishes →

PDFPC-02 data sheet PDFElevations DXFCAD

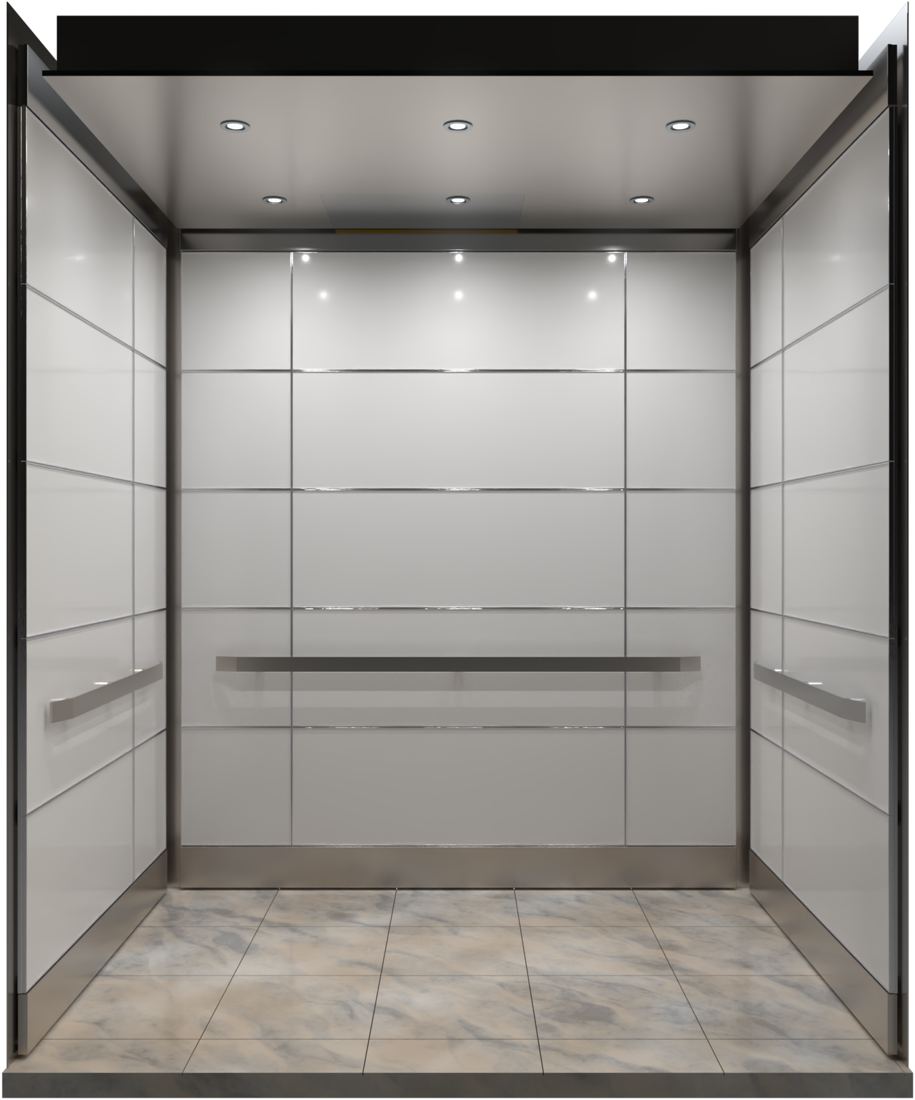

Horizon configuration — Three-Tier Horizontal Panels · Handrail

Horizon

Three-Tier Horizontal Panels · HandrailSpecify finishes →

PDFPC-03 data sheet PDFElevations DXFCAD

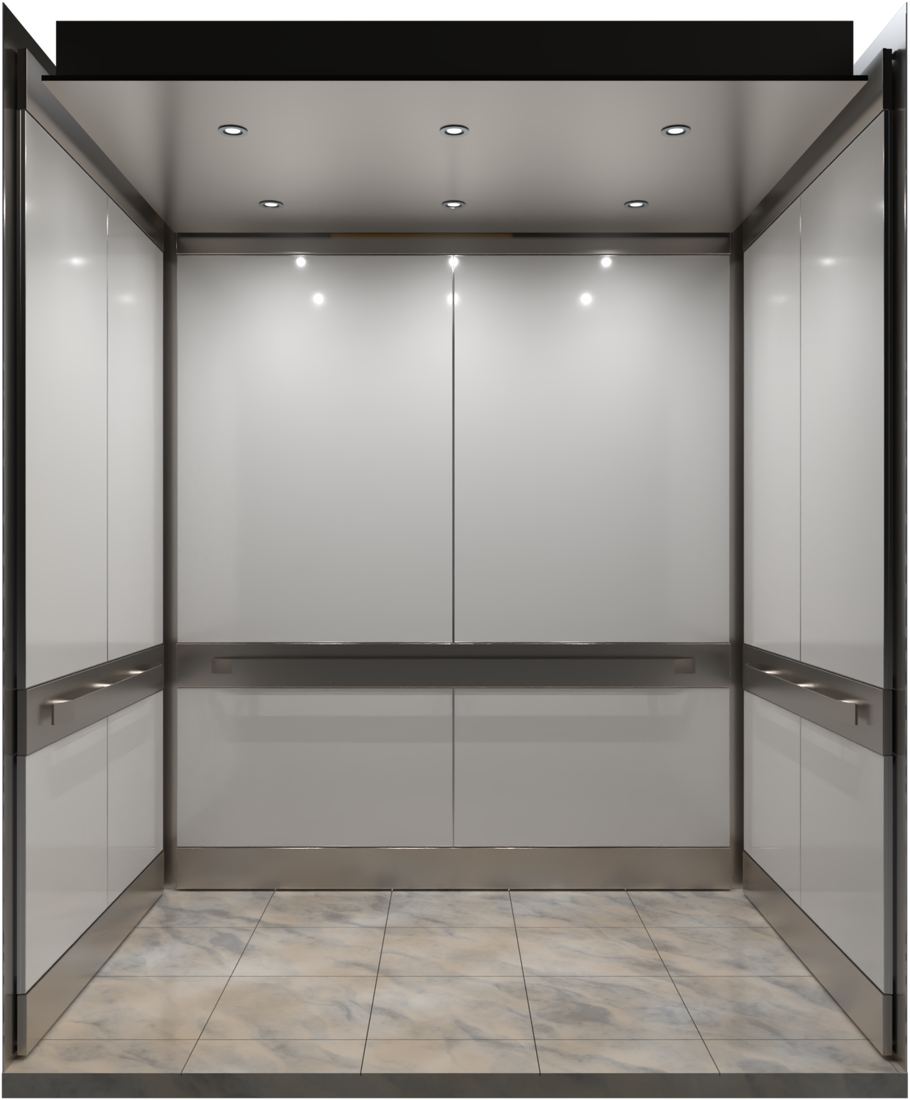

Meridian configuration — Horizontal Panels · Chair Rail

Meridian

Horizontal Panels · Chair RailSpecify finishes →

PDFPC-04 data sheet PDFElevations DXFCAD

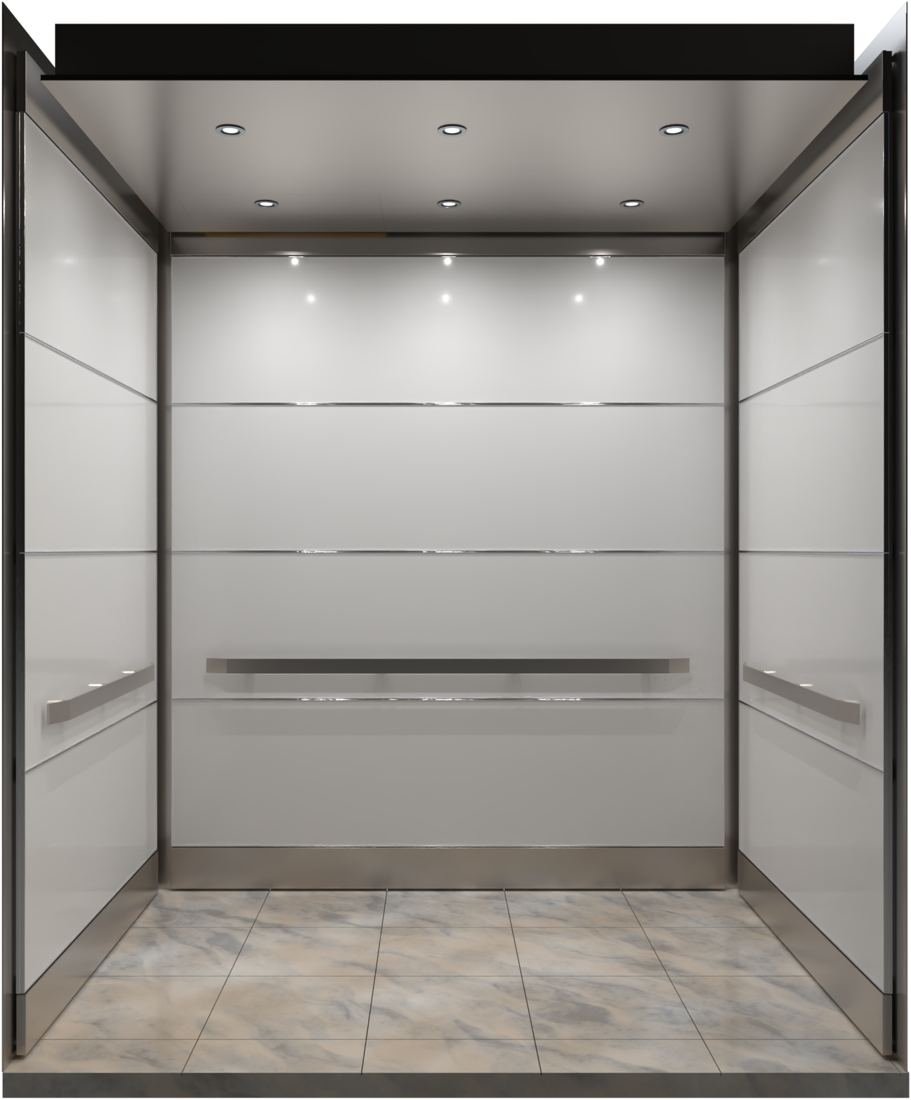

Stratus configuration — Two-Tier Upper Panels · Handrail

Stratus

Two-Tier Upper Panels · HandrailSpecify finishes →

PDFPC-05 data sheet PDFElevations DXFCAD

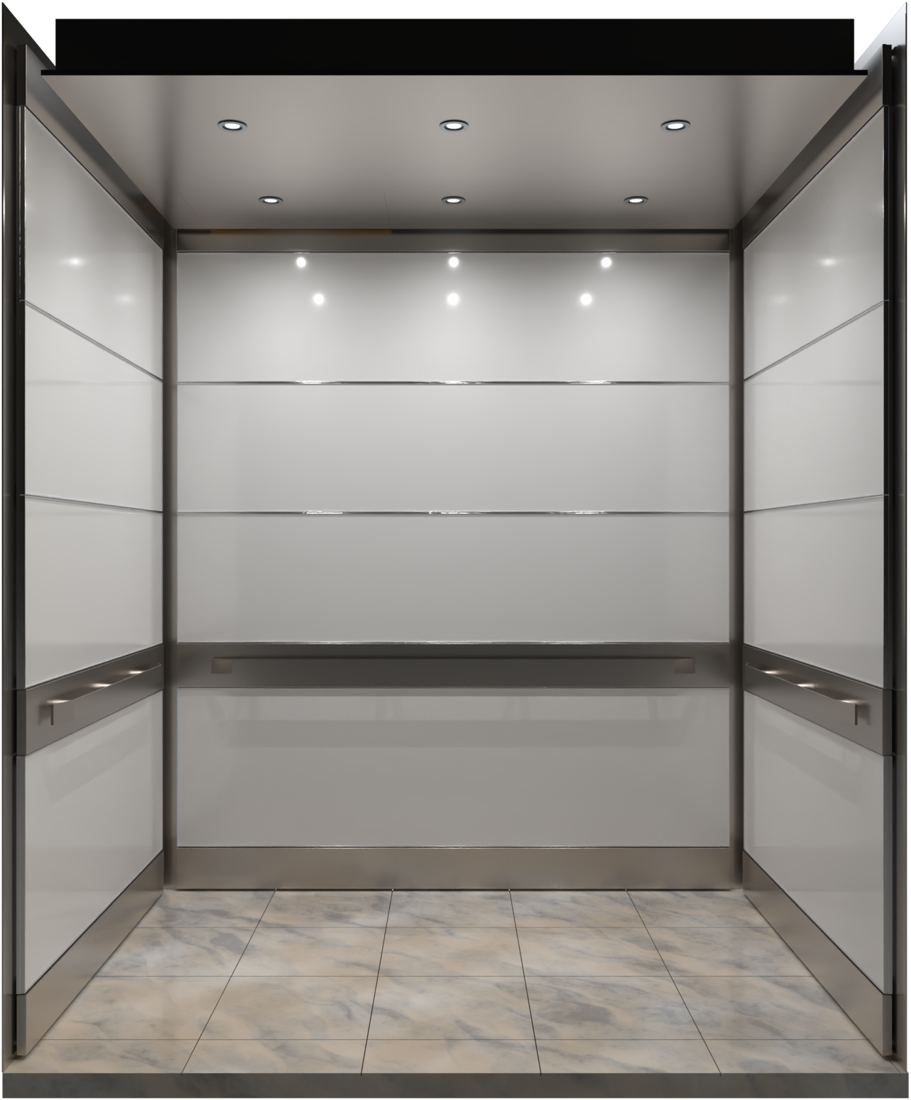

Zenith configuration — Two-Tier Upper Panels · Chair Rail

Zenith

Two-Tier Upper Panels · Chair RailSpecify finishes →

PDFPC-06 data sheet PDFElevations DXFCAD

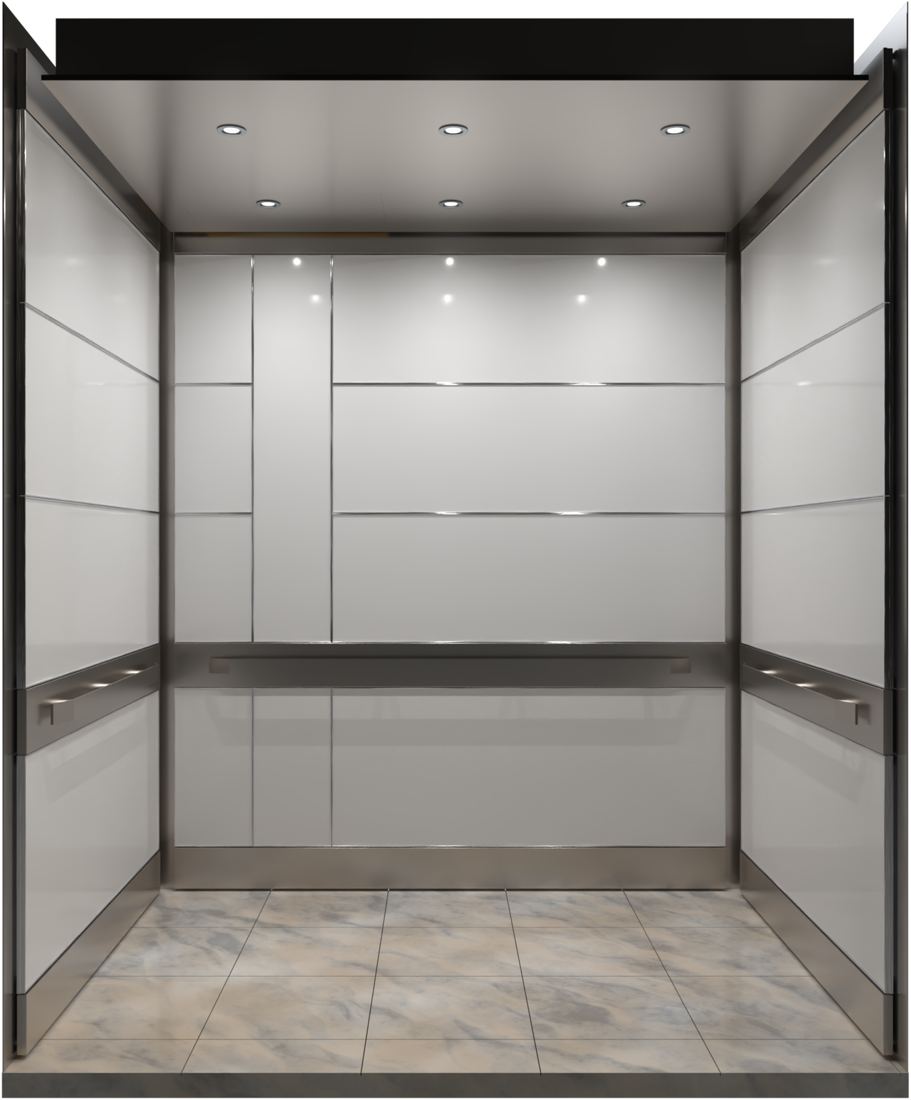

Ascent configuration — Offset Vertical Panel · Horizontal Tiers · Chair Rail

Ascent

Offset Vertical Panel · Horizontal Tiers · Chair RailSpecify finishes →

PDFPC-07 data sheet PDFElevations DXFCAD

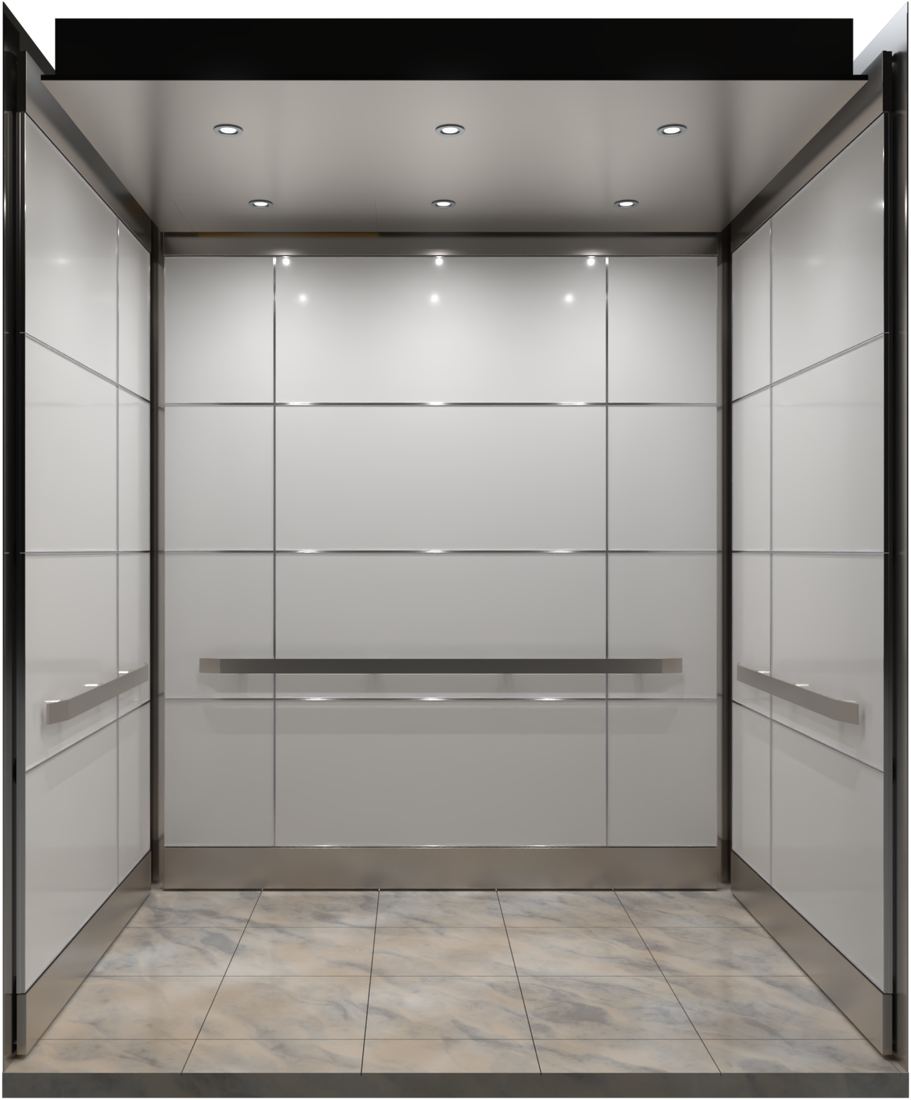

Executive configuration — Three-Bay Panel Grid · Handrail

Executive

Three-Bay Panel Grid · HandrailSpecify finishes →

PDFPC-08 data sheet PDFElevations DXFCAD

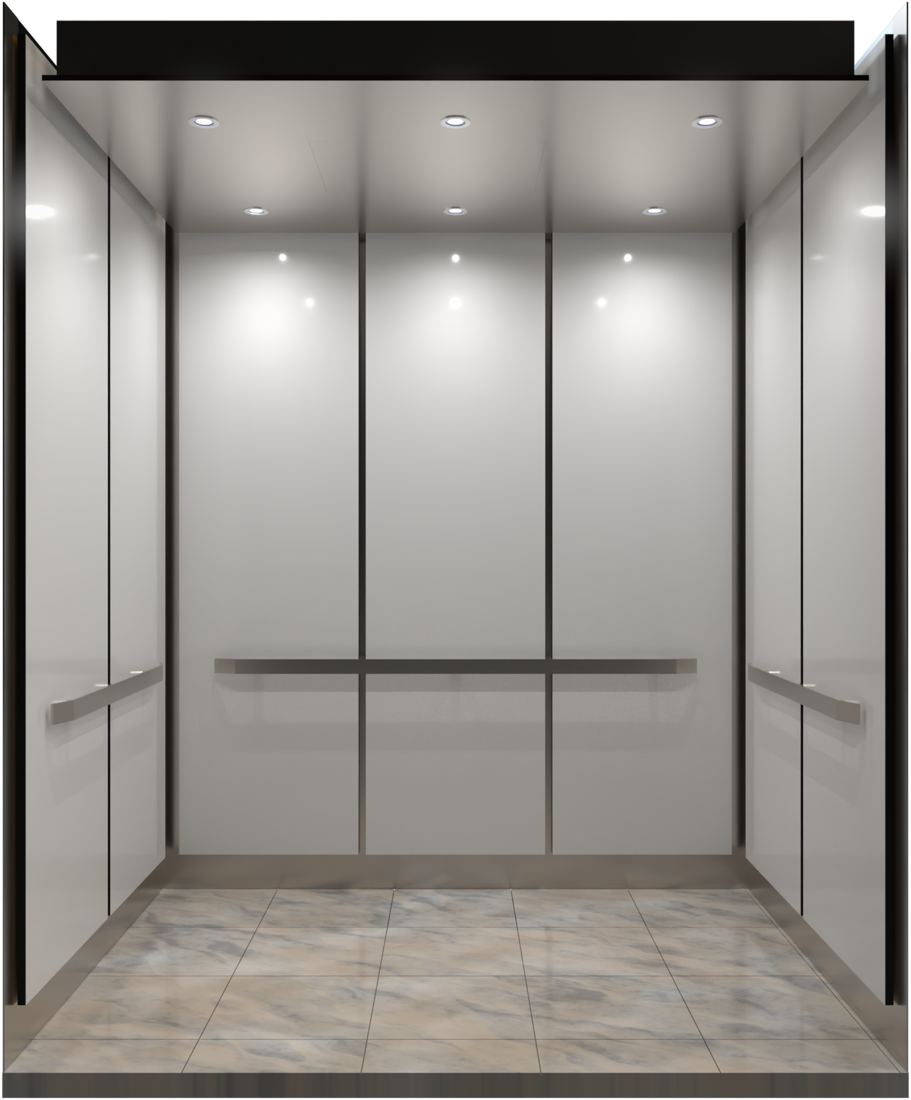

Colonnade configuration — Three Full-Height Vertical Panels · Handrail

Colonnade

Three Full-Height Vertical Panels · HandrailSpecify finishes →

PDFPC-09 data sheet PDFElevations DXFCAD

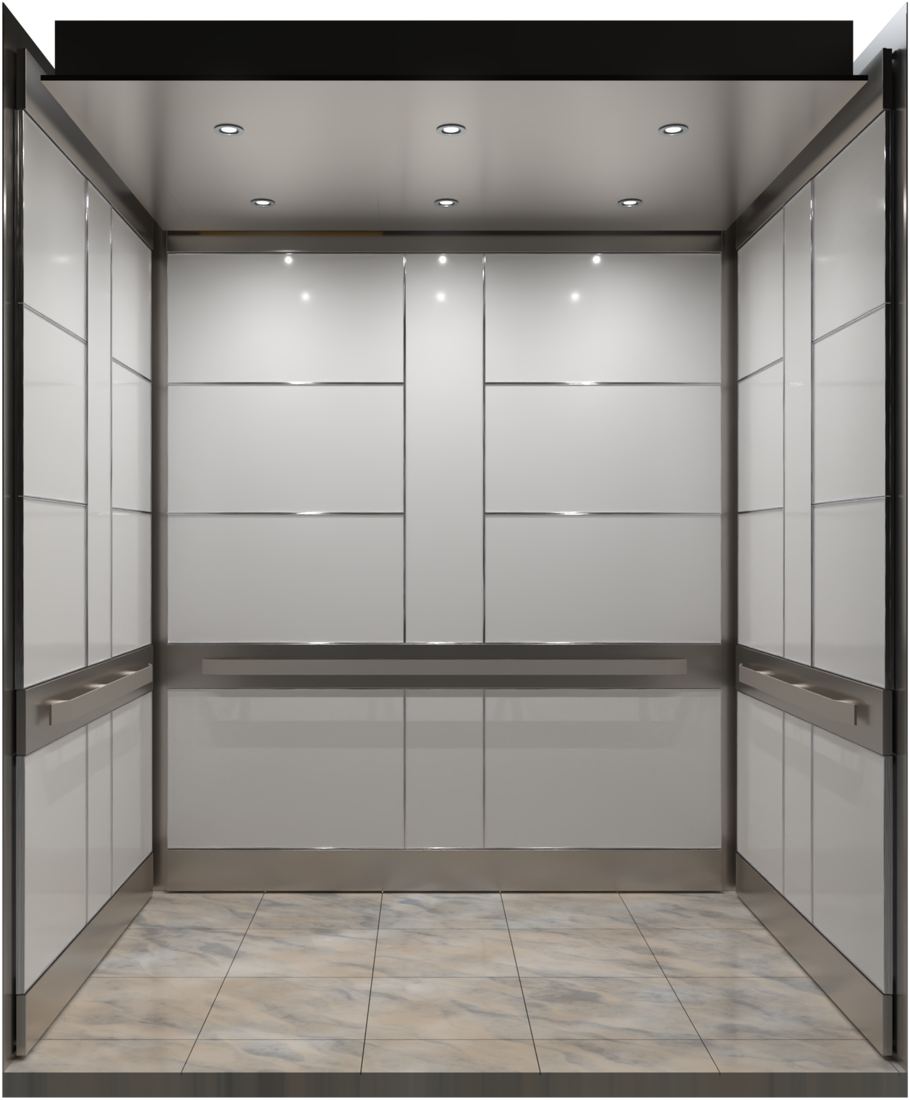

Pinnacle configuration — Nine-Panel Grid · Chair Rail

Pinnacle

Nine-Panel Grid · Chair RailSpecify finishes →

PDFPC-10 data sheet PDFElevations DXFCAD

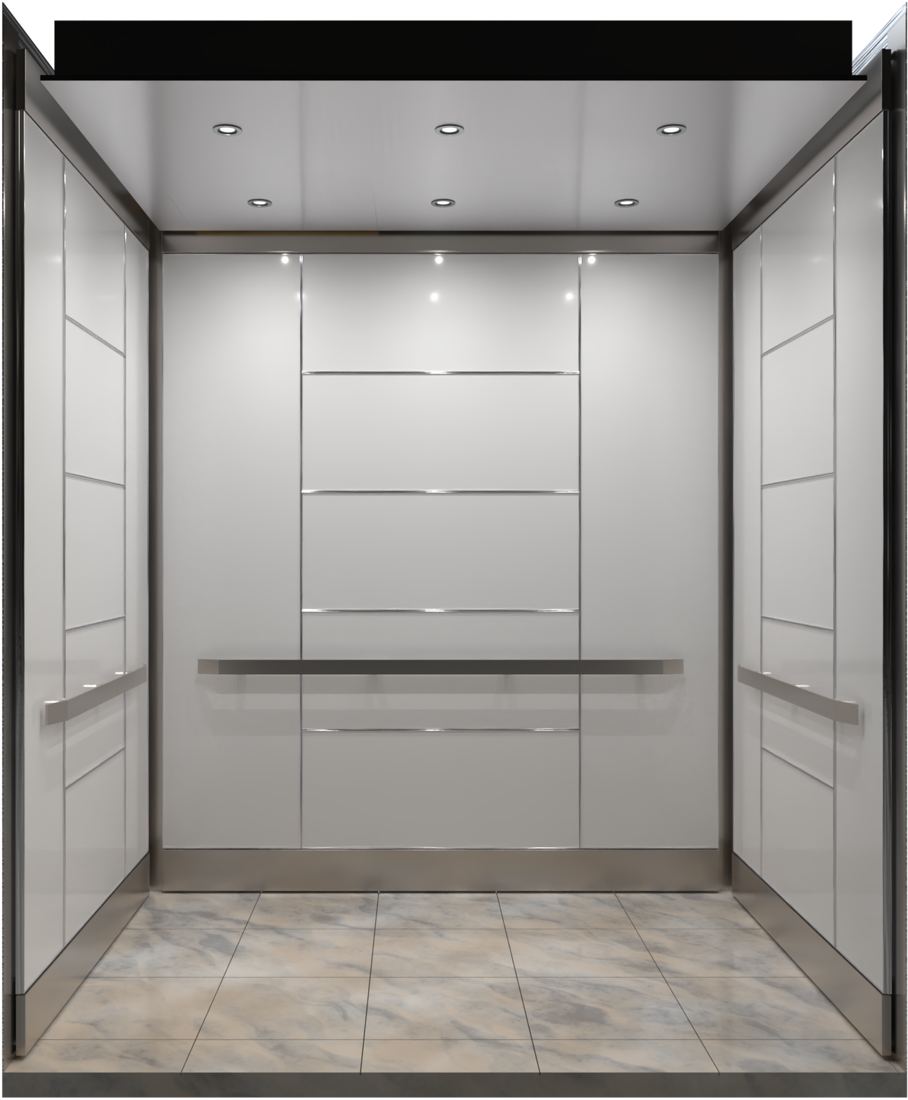

Cascade configuration — Center Stack · Stepped Tiers · Handrail

Cascade

Center Stack · Stepped Tiers · HandrailSpecify finishes →

PDFPC-11 data sheet PDFElevations DXFCAD

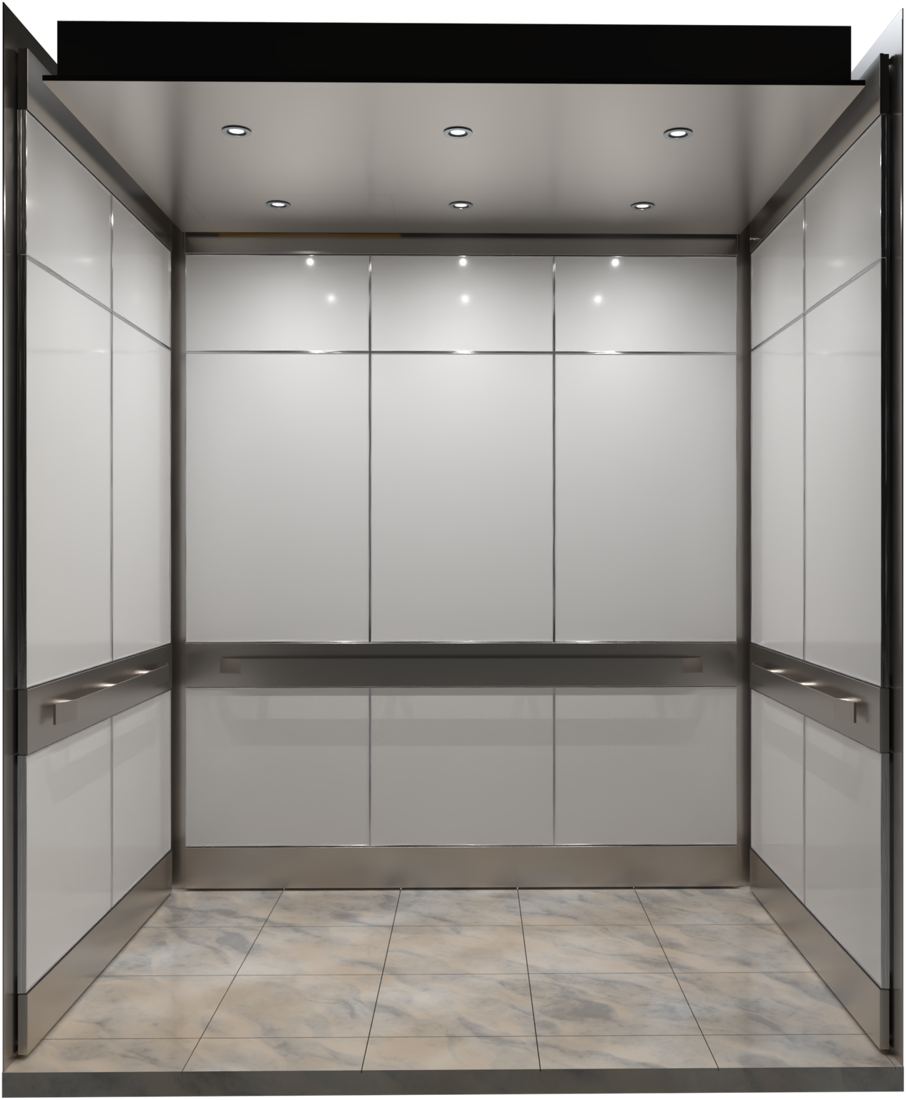

Premier configuration — Vertical Panels · Upper Tier · Chair Rail

Premier

Vertical Panels · Upper Tier · Chair RailSpecify finishes →

PDFPC-12 data sheet PDFElevations DXFCAD

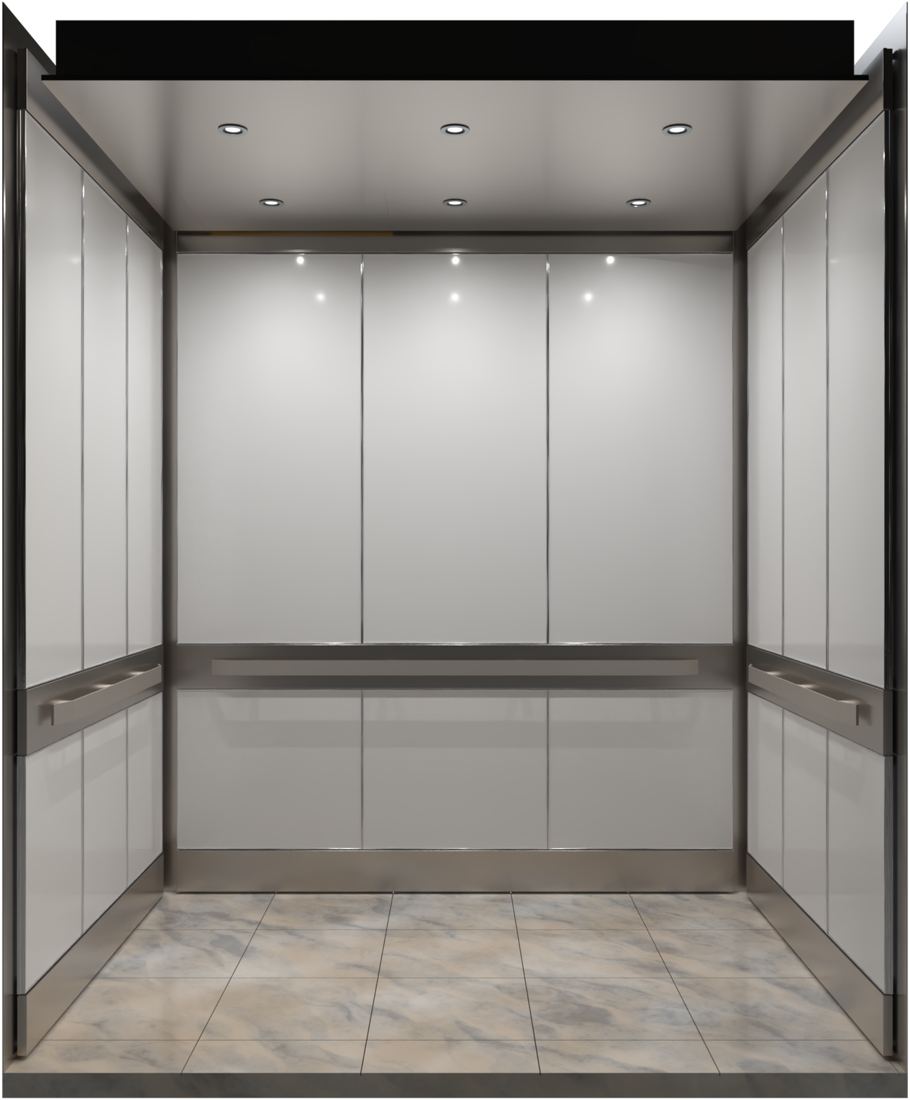

Elite configuration — Full-Height Vertical Panels · Chair Rail

Elite

Full-Height Vertical Panels · Chair RailSpecify finishes →

PDFPC-13 data sheet PDFElevations DXFCAD

Summit configuration — Nine-Panel Grid · Handrail

Summit

Nine-Panel Grid · HandrailSpecify finishes →

PDFPC-14 data sheet PDFElevations DXFCAD

Need a layout that is not shown? Describe it to us and we prepare the documents for a custom configuration.
