Ceilings & Lighting

Two ceiling systems, each with its own lighting family. Solid Plain ceilings take recessed LED downlights and optional 4590 perimeter lighting; Welded Aluminum Frame ceilings carry an integrated LED strip behind frosted lenses.

Standard Laminates Decorative Metals Ceilings & Lighting Handrails Pads & Accessories

Elevator ceiling with recessed LED downlights

Ceiling style

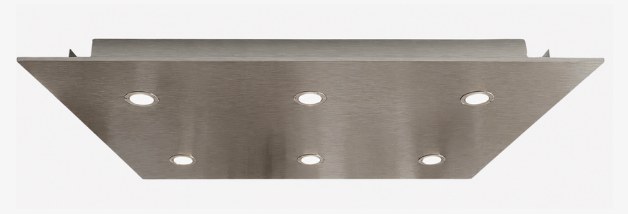

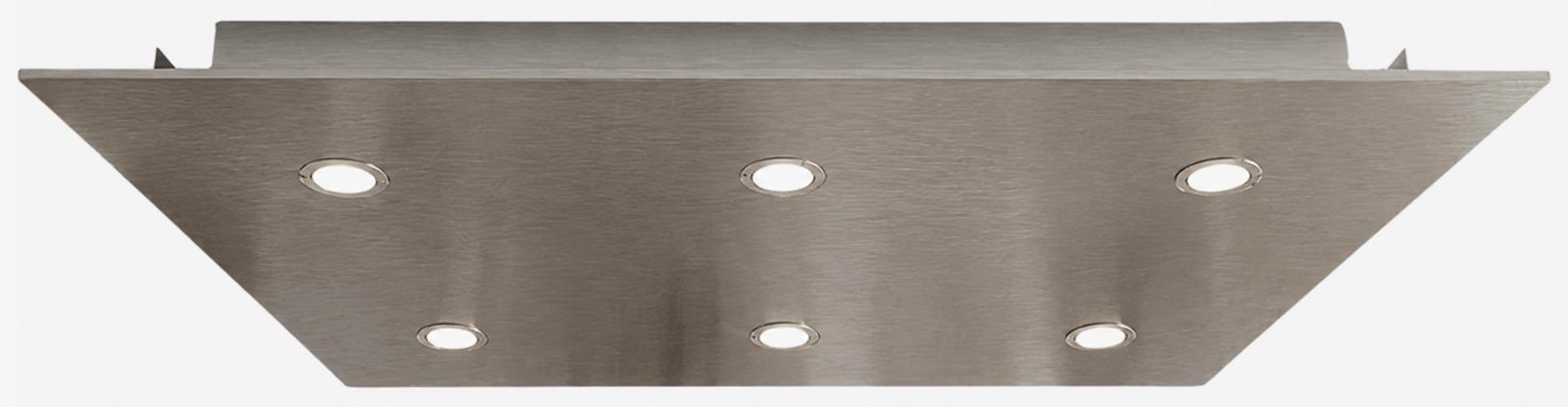

Solid Plain Ceiling

One-piece metal or laminate ceiling with recessed LED downlights and optional 4590 perimeter lighting.

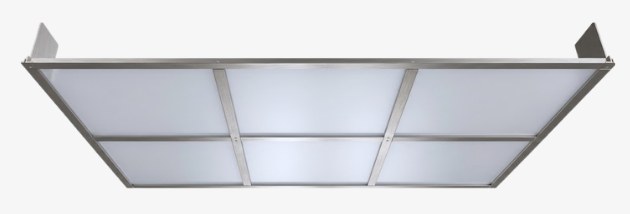

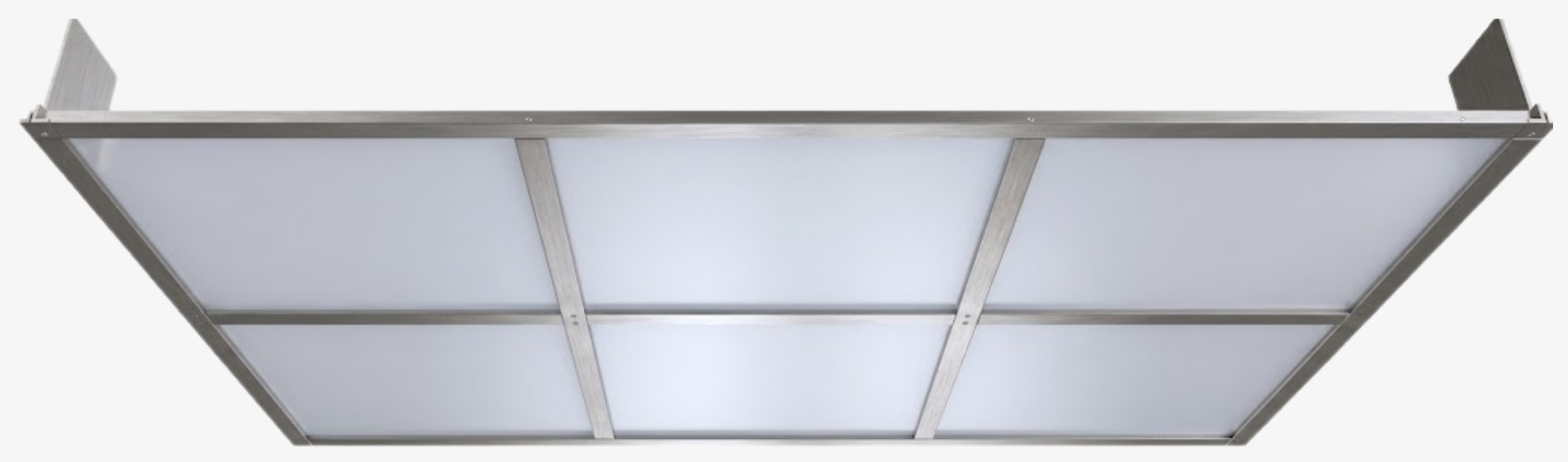

Welded Aluminum Frame Ceiling

Welded aluminum frame with frosted polycarbonate lenses and integrated LED strip lighting.

Recessed lighting

Solid Plain Ceiling only

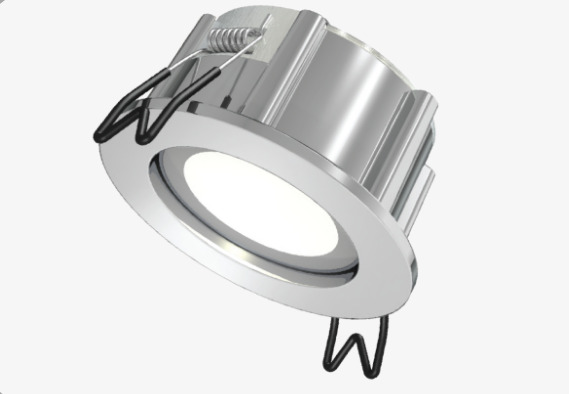

Eyebeam-SC

Low profile LED

LED wattage	4W
Dimmer included	Yes
Lumens per watt	52.2
Color temp	3000K (std.)

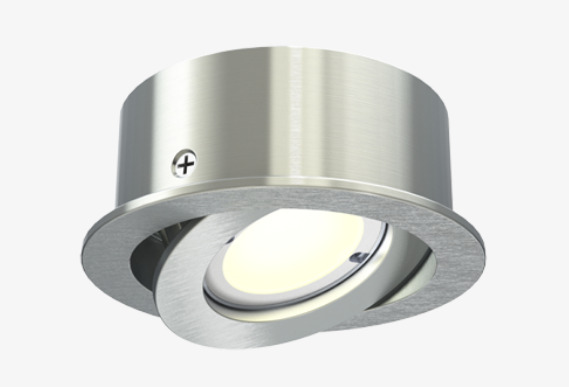

Swivelbeam

Swiveling LED

LED wattage	4W
Dimmer included	Yes
Lumens per watt	52.2
Color temp	3000K (std.)

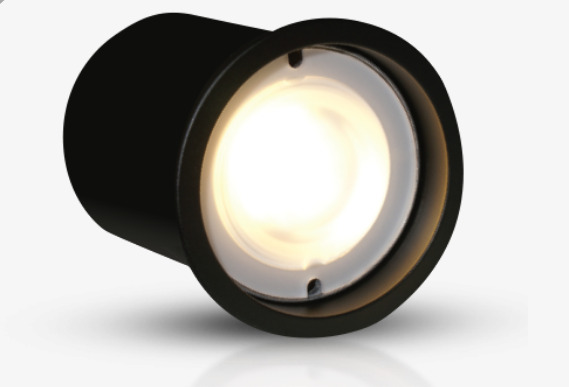

Minibeam

Small / compact LED

LED wattage	4W
Dimmer included	Yes
Lumens per watt	43.8
Color temp	3000K (std.)

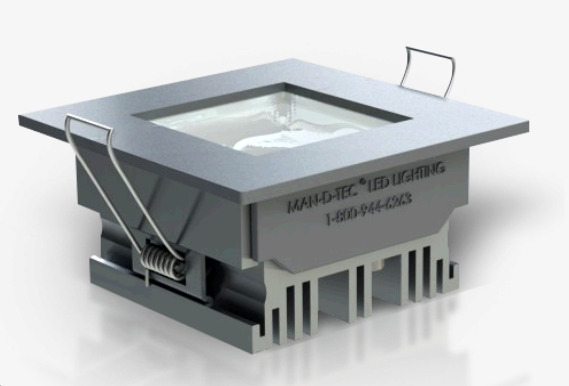

S2Beam

Square LED

LED wattage	4W
Dimmer included	Yes
Lumens per watt	60.8
Color temp	3000K (std.)

Options — Finishes: black, bronze, gold, polished. Color temperatures: 2700, 3000, 3500, 4000, 6200K and blue. Emergency battery back-up specific to light system.

Perimeter lighting

Solid Plain Ceiling only

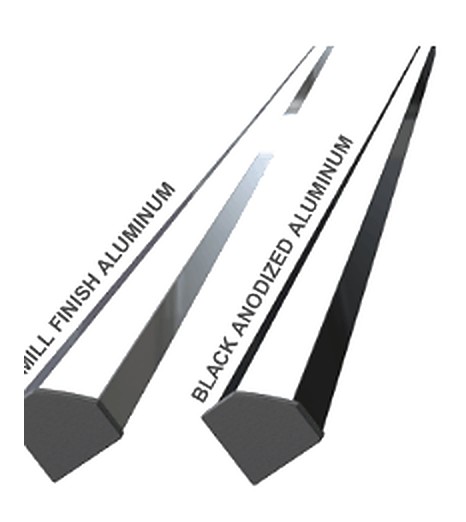

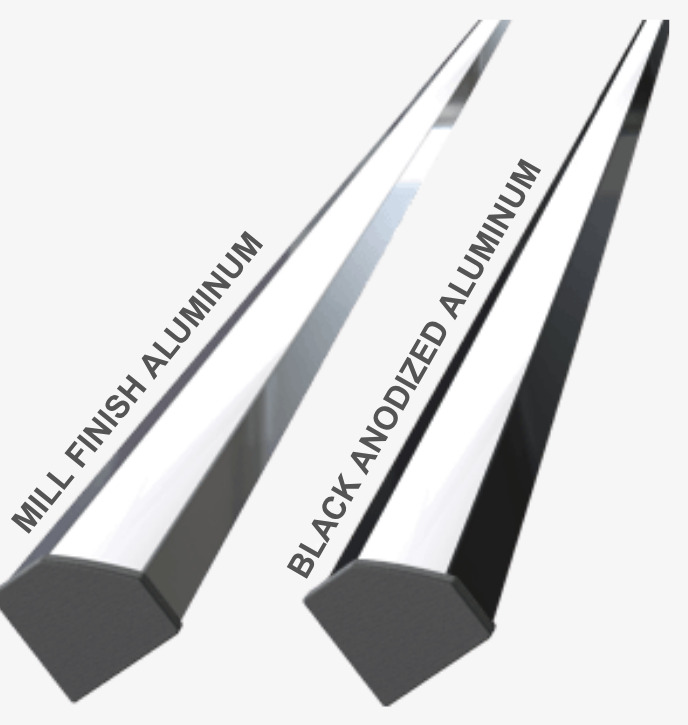

4590 Perimeter Lighting

Mill finish or black anodized aluminum

LED wattage	5W / foot
Dimmer included	Yes
Color temp	3000K (std.)

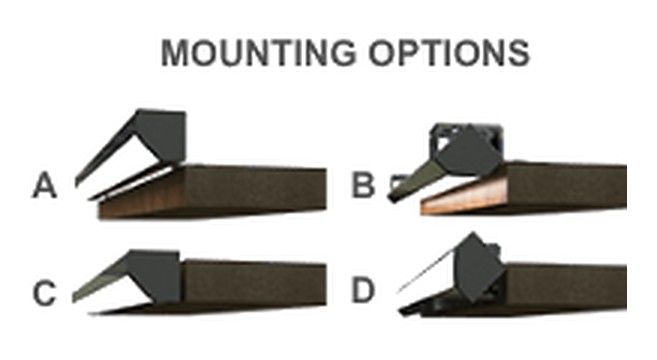

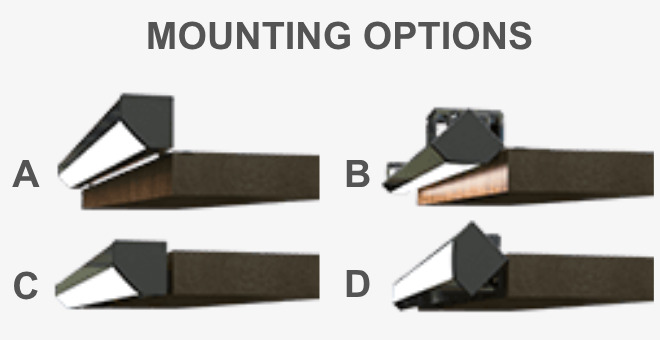

4590 perimeter lighting mounting styles A, B, C and D

Mounting styles A–D

Four ways to mount the 4590 extrusion at the ceiling edge.

Options — Mounting style: A, B, C or D. Color temperatures: 2700, 3000, 4000K. Emergency battery back-up: ELS-L4. Finishes: mill aluminum or black anodized aluminum.
