Colored Glass
12 standard colorsColored glass can be matched to any RAL color or to any paint manufacturer code.

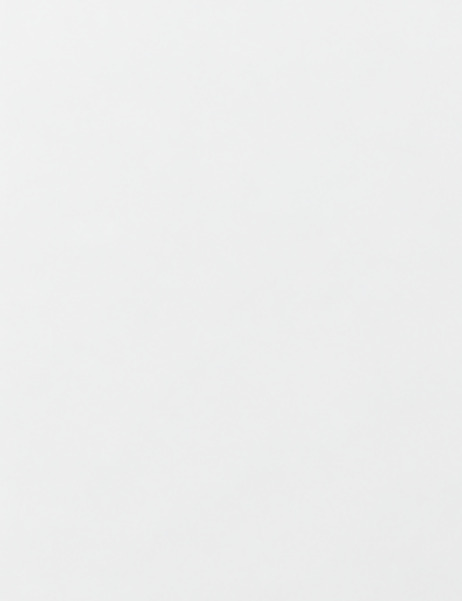

17732

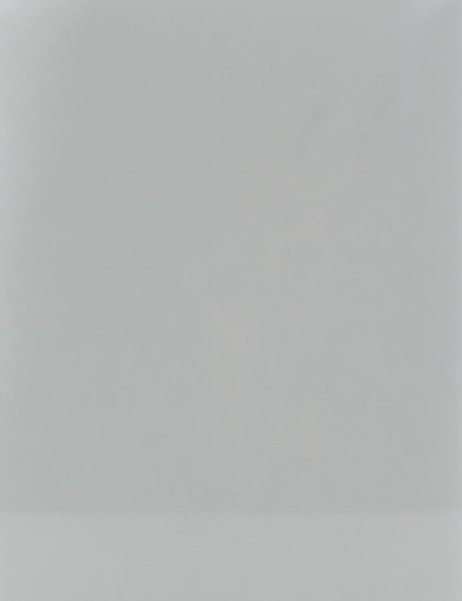

N37

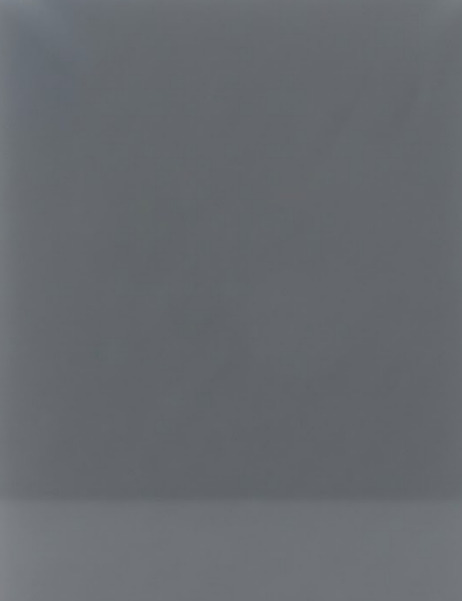

N36

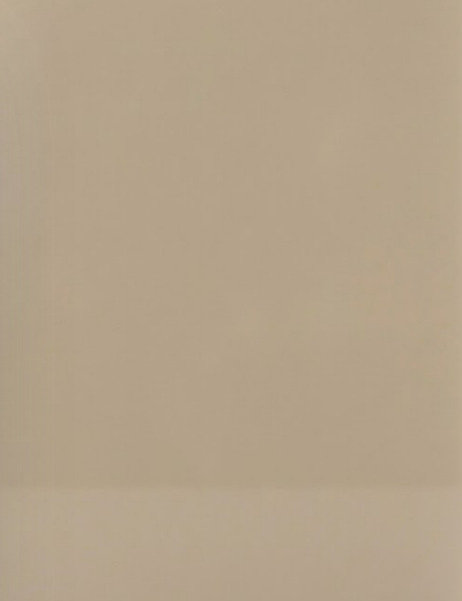

N25

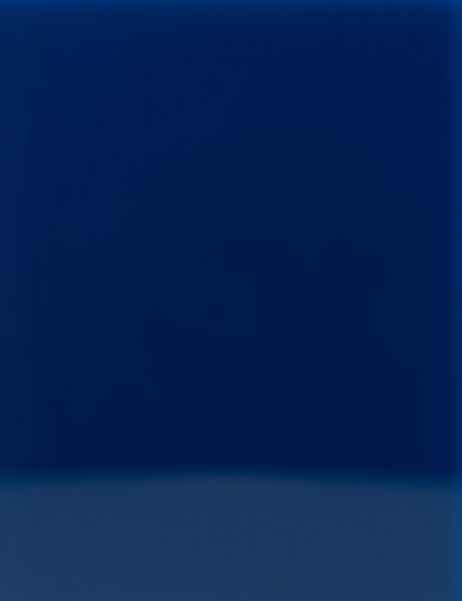

16056
B62

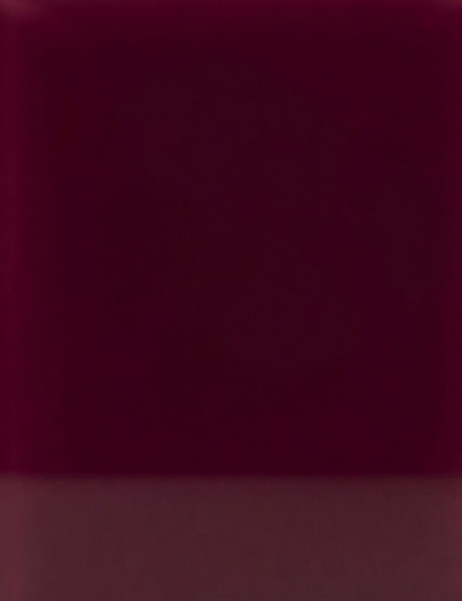

R39

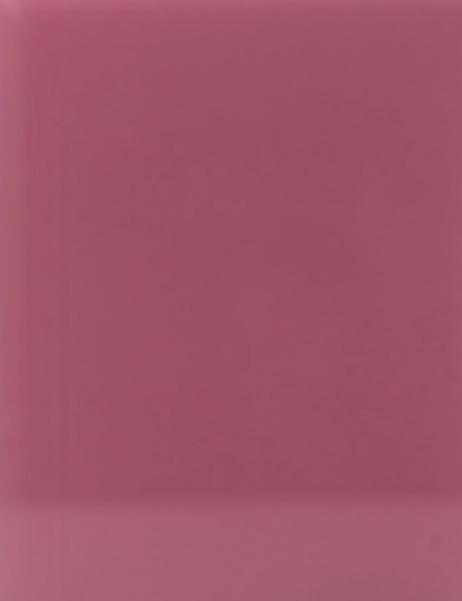

V13

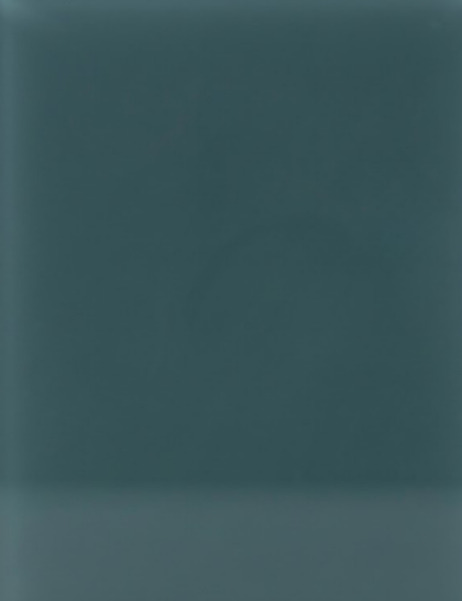

B63

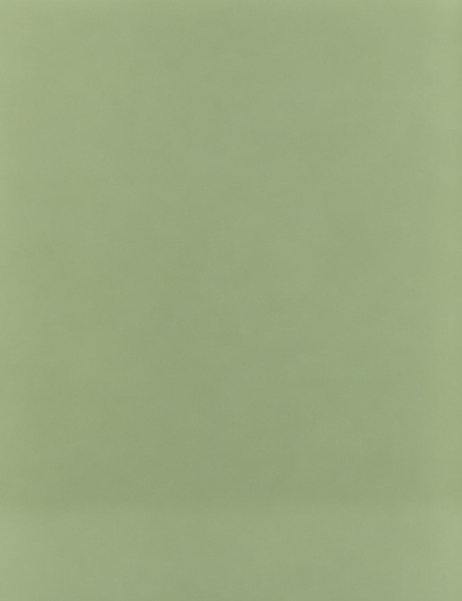

G35

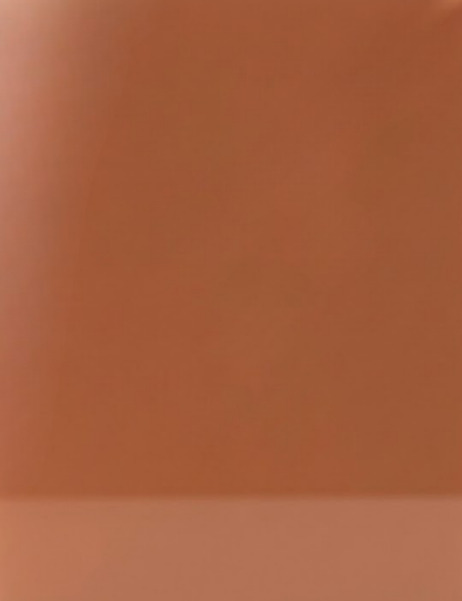

N31

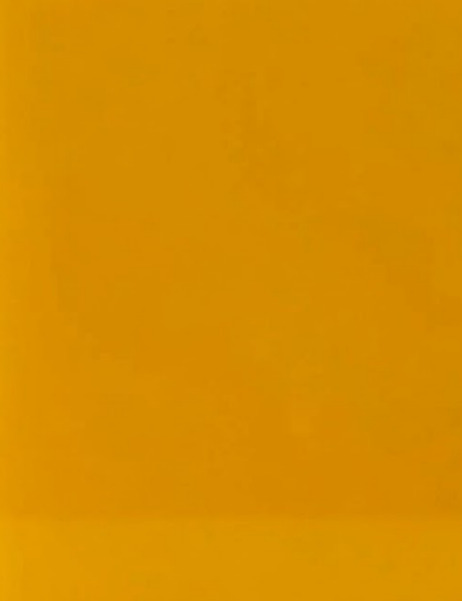

Y15Mirror
3 options

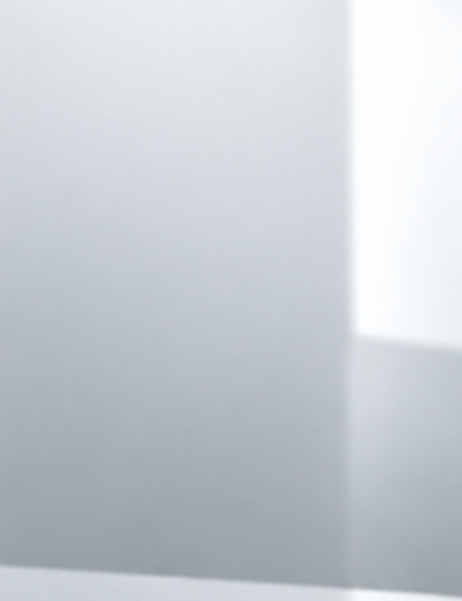

Mirror
Bronze Mirror

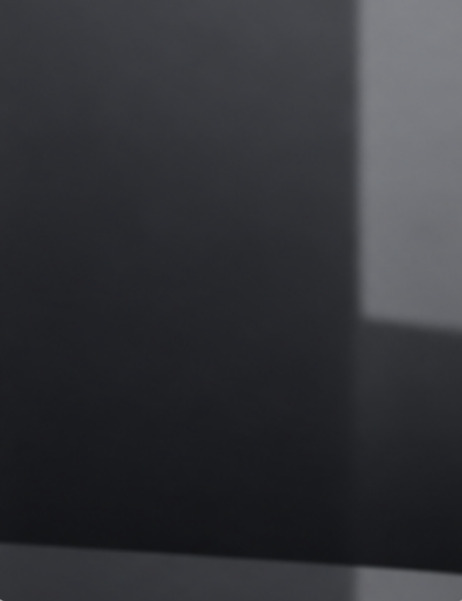

Black MirrorAntique Mirror
3 options

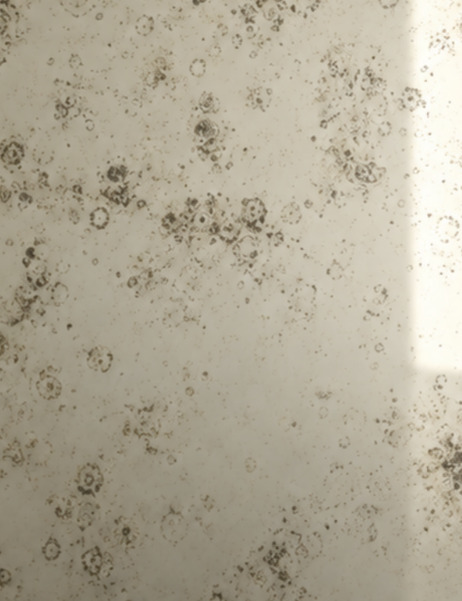

20234

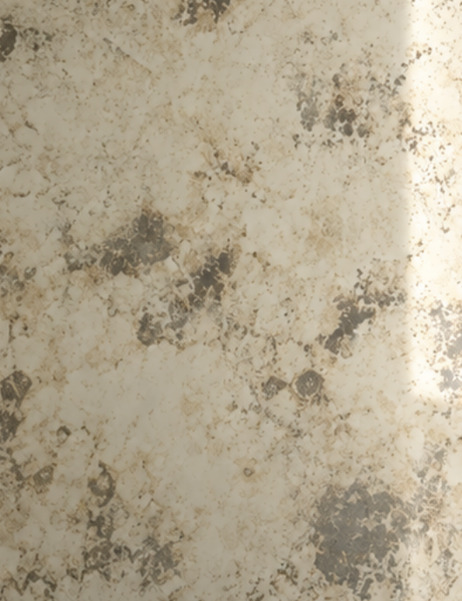

20233
20128Decorative Inlay
6 options
17556

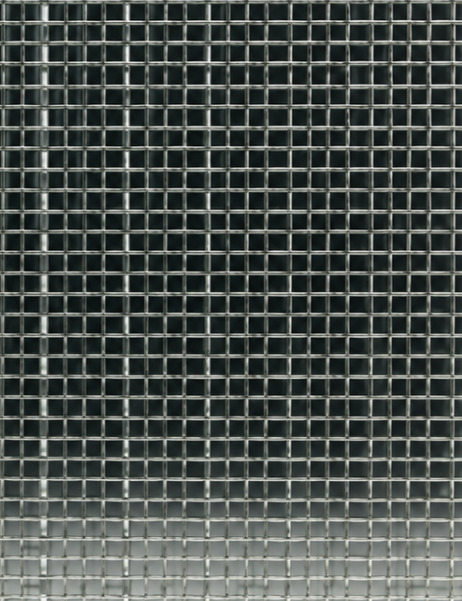

18134

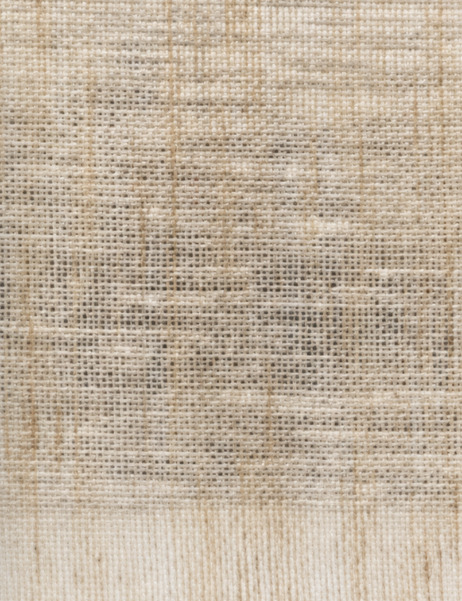

15308

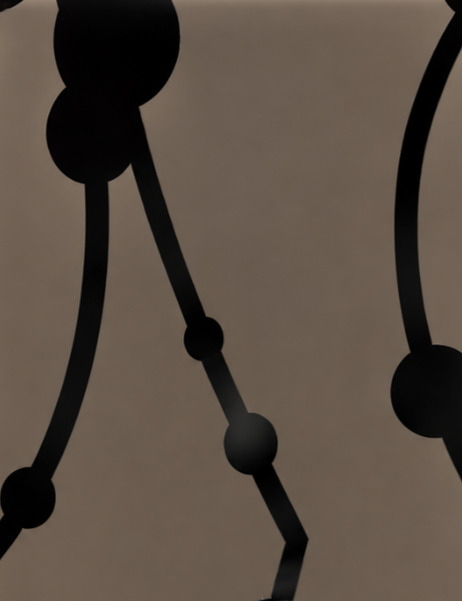

17694
12722
19215Surface finishes
Polished (gloss) is standard. Frosted (acid-etched) is available on every glass and mirror option.

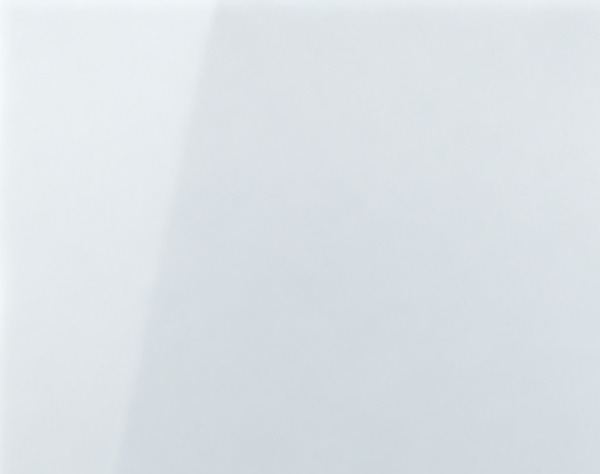

Gloss
Frosted

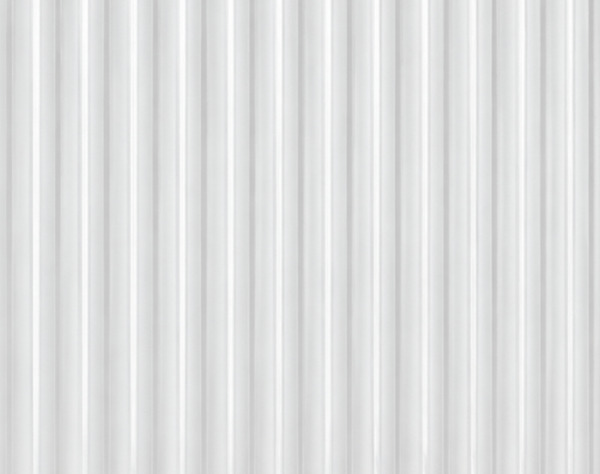

Fluted — 18433

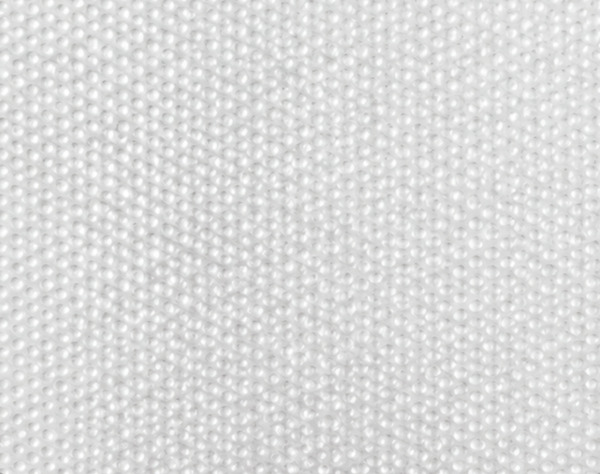

Micro Dots — 17710

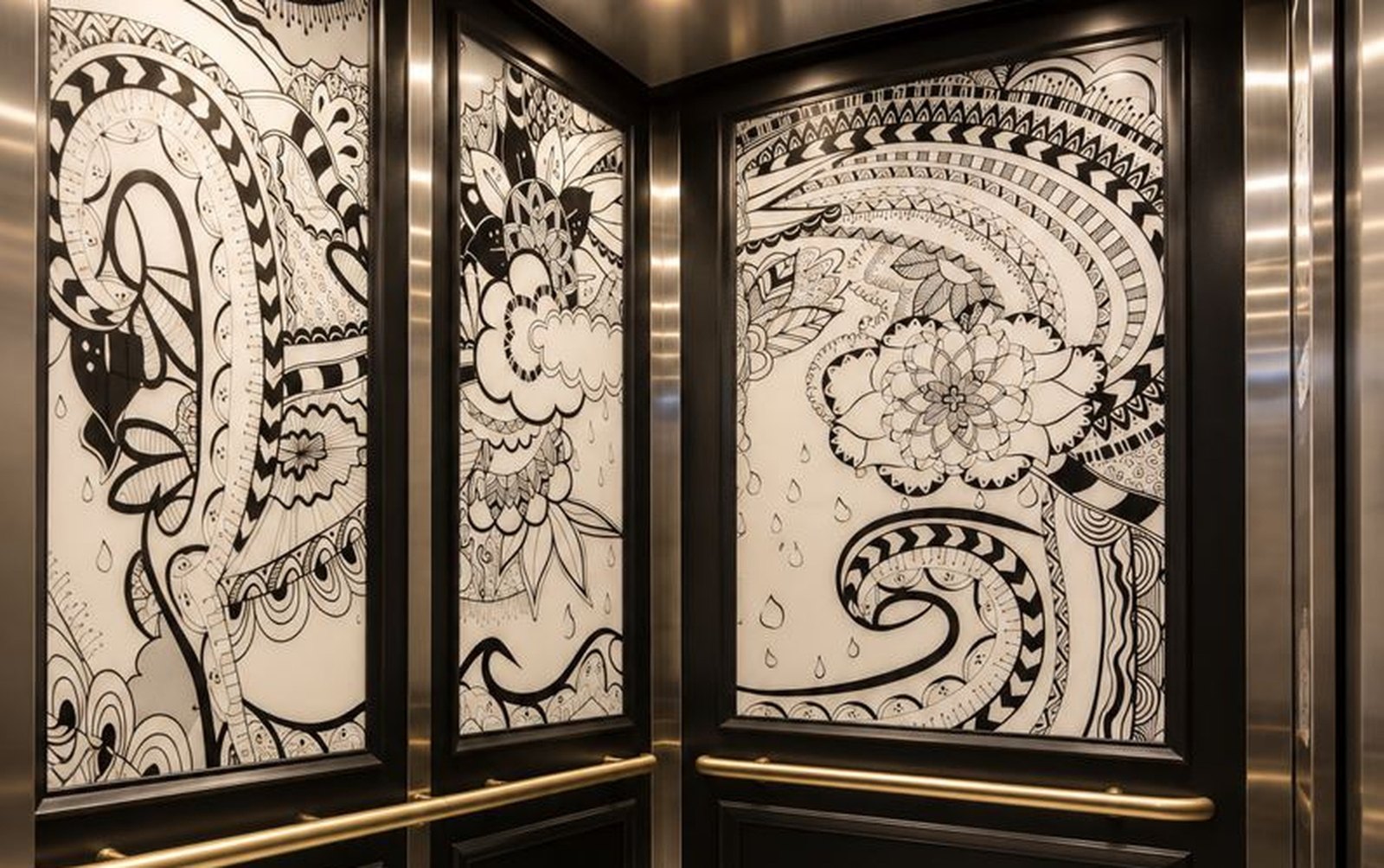

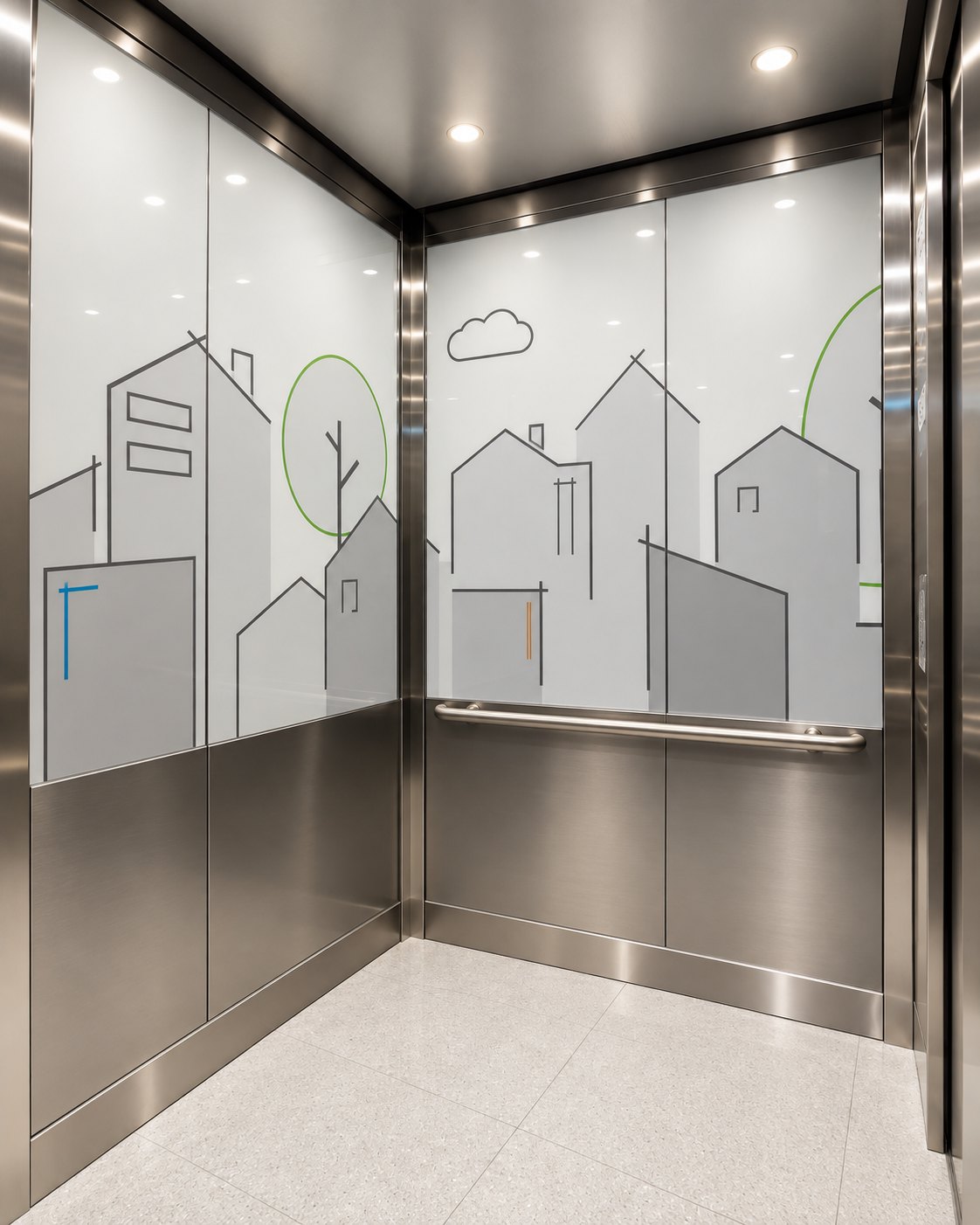

Custom Image Glass
Any graphic, photograph, pattern or brand element can be printed at high resolution and sealed permanently inside the center layer of the glass, where it can never be scratched, peeled or cleaned away. Artwork can run continuously across multiple panels for a seamless mural.
Specifications
| Item | Standard |
|---|---|
| Construction | Laminated safety glass — two 1/8" plies bonded around a decorative interlayer; 5/16" overall |
| Transparency | Opaque or obscured only; transparent glass is not used in cab interiors |
| Safety Mark | Permanent ANSI Z97.1 acid-etched safety-glazing logo in the lower corner of every panel for inspector verification |
| Surface Finish | Polished (standard) or frosted (acid-etched); available on every glass and mirror option |
| Color Matching | Colored glass can be matched to any RAL color or to any paint manufacturer code |
| Mounting | Panels are individually framed in Fusion aluminum extrusions and hung on concealed fasteners like every other Fusion panel |
Request a quote
One short ride will leave a lasting impression.
We'll put together concept drawings and pricing at no charge.
