Elevator Code Data Plates
Laser-etched code data plates, alteration tags and inspection tags with the ASME A17.1-2022 wording built in — etched in our Stevensville shop and ordered online in about two minutes at CodePlates.com.
Every elevator needs a code data plate. ASME A17.1 Section 8.9 requires one on each unit, in plain view at the main line disconnect or controller, showing the code edition in effect when the elevator was installed and the code in effect at each alteration — and it has to stay legible for the life of the equipment.
We have built elevator interiors for contractors across the Mid-Atlantic for years, and the same request kept coming up on modernization jobs: can you make us the plates too? So we set up CodePlates.com. Same shop, same people. Laser-etched anodized aluminum instead of screen-printed epoxy, with the current ASME A17.1-2022 references already on the plate.
There is no quote, no drawing and no phone tag. Pick the plate, add your company name or logo (we etch it free), and it ships in three to four business days.
What we make
Full catalog at CodePlates.comCode data plates

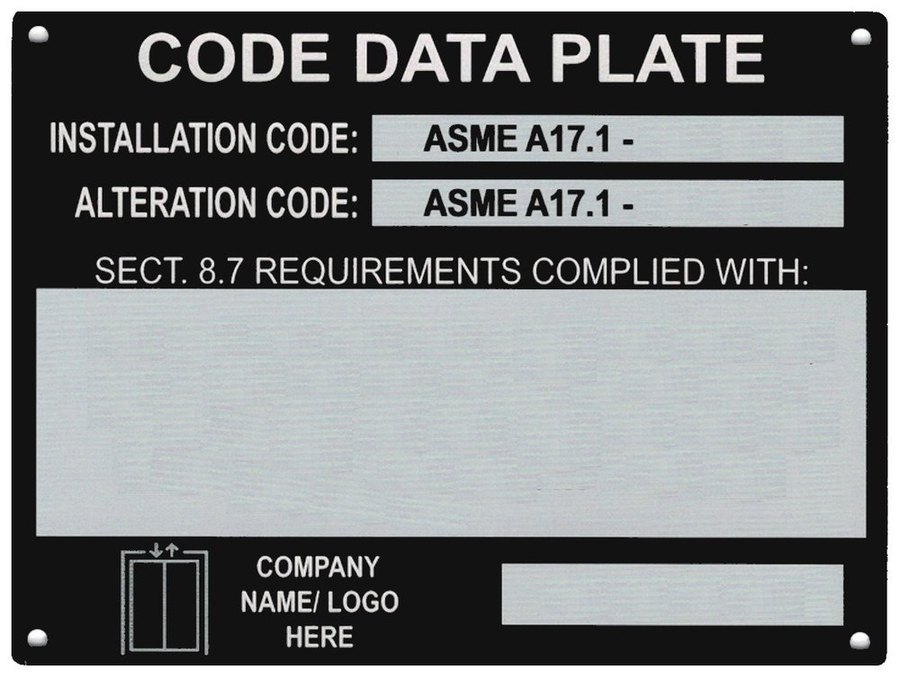

→Installation code, alteration code and the Section 8.7 requirements block, per ASME A17.1 8.9. Order them blank, or filled in with your job's information before they ship.
Capacity & rated load plates

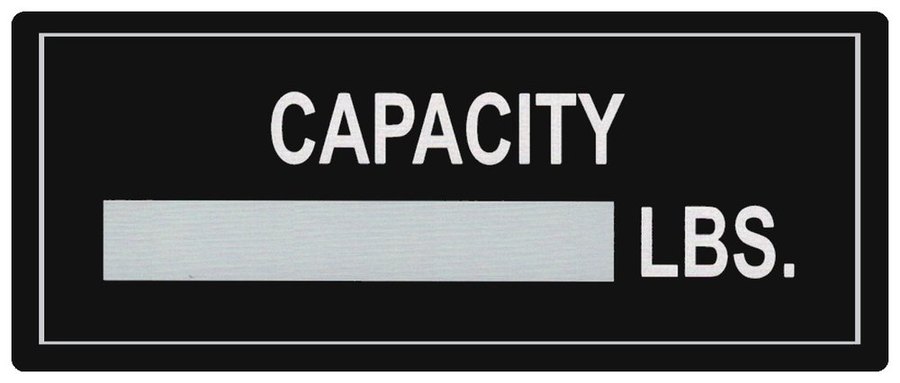

→Capacity plates, crosshead data plates and the other required car plates, etched to stay readable.
Periodic test & inspection tags

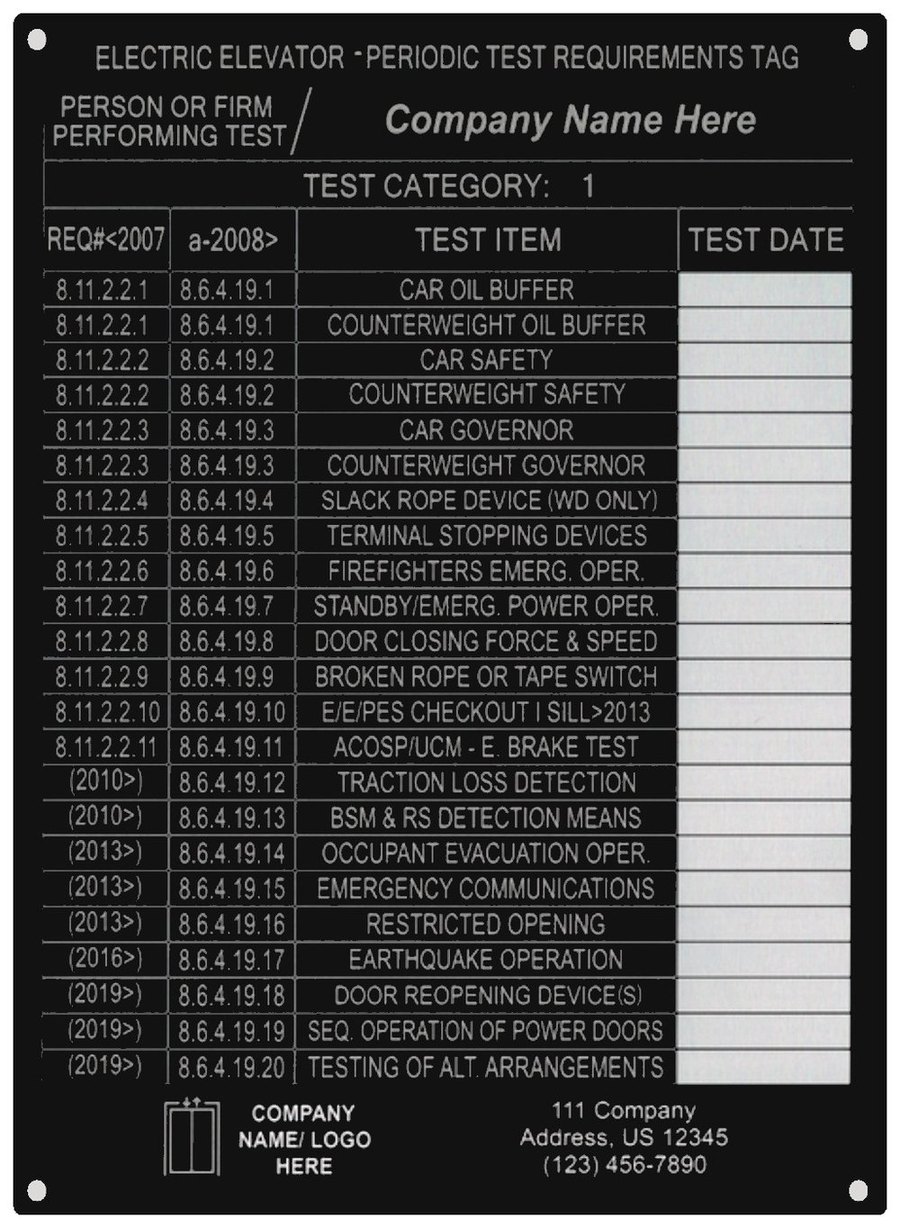

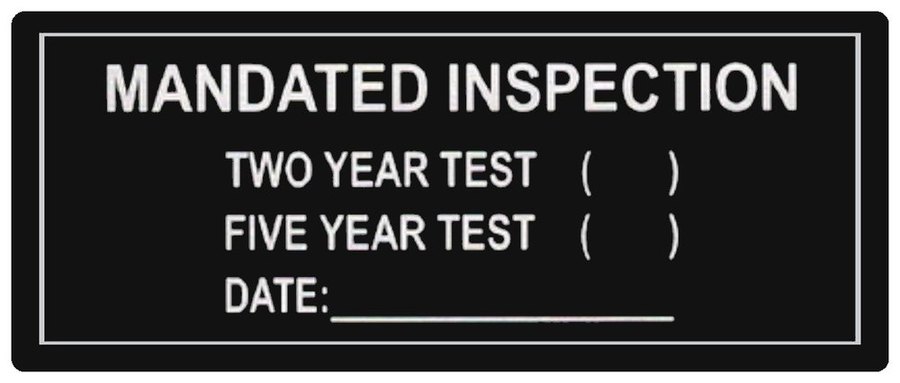

→Electric and hydraulic periodic test requirement tags and mandated inspection tags with every test item listed and a date column for the tester.
Custom plates, logos & signs
→Company plates, custom fields and elevator signage. If it can be laser-etched on anodized aluminum, we can make it.
Why contractors order from CodePlates.com
Order online in about two minutes
No drawings, no quotes, no back-and-forth. Pick the plate and quantity and check out.
ASME A17.1-2022 wording built in
Current code references are pre-etched, so the plate is right the first time.
Laser-etched anodized aluminum
Permanent lettering that will not fade, peel or wipe off like printed labels. Meets the legibility rules in 8.9.3.
Your logo etched free
Company name and logo on eligible plates at no extra charge.
Ships in 3–4 business days
Rush service available. Local pickup in Stevensville, Maryland.
Made by elevator people
Same shop and same crew that fabricates and installs CabCraft cab interiors.
Common questions
What is an elevator code data plate?
A plate required by ASME A17.1 Section 8.9 on every elevator. It shows the code and edition in effect when the unit was installed, the code in effect at any alteration, and the applicable Section 8.7 requirements, so inspectors know which code to inspect and test against.
Where does the code data plate go?
In plain view, securely attached to each main line disconnect or controller. It may also be mounted inside the controller as long as it is in plain view with the controller door open.
Do I need a new plate after a modernization?
The plate has to show the code in effect at the time of any alteration and the Section 8.7 requirements that applied, so a modernization usually calls for a new or additional alteration plate. Our alteration plates are laid out for exactly that.
Can you fill in the plate before it ships?
Yes. Choose the filled-in option on CodePlates.com, type in the installation code, alteration code and Section 8.7 items, and we etch them for you. Blank plates are available too.
Do you make plates that are not in the catalog?
Yes. Custom plates, company logo plates and signs are made to order — contact CodePlates.com with what you need.
Browse plates and tags at CodePlates.com.
Code data plates, alteration tags, test tags, capacity plates and custom signage — priced per plate, ordered online, shipped from Stevensville.
